Qdrant Storage Autoscaling

This guide will give an overview on how KubeDB Autoscaler operator autoscales the database storage using QdrantAutoscaler CRD.

Before You Begin

• You should be familiar with the following KubeDB concepts:
  • Qdrant
  • QdrantAutoscaler
  • QdrantOpsRequest

How Storage Autoscaling Works

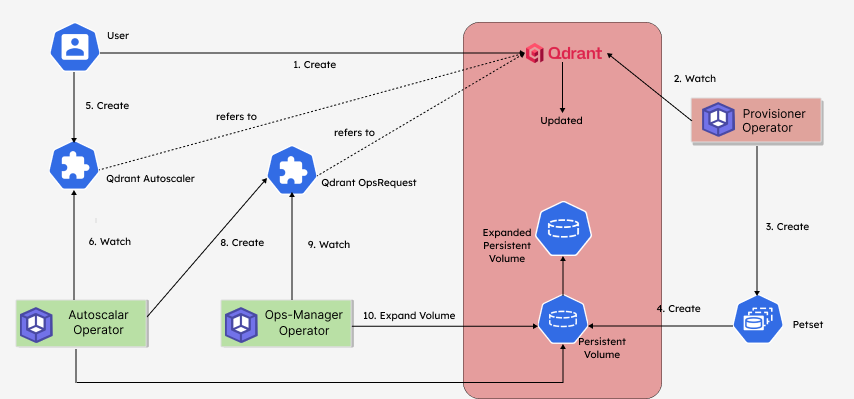

The following diagram shows how KubeDB Autoscaler operator autoscales the resources of Qdrant. Open the image in a new tab to see the enlarged version.

  

The Auto Scaling process consists of the following steps:

1. At first, a user creates a Qdrant Custom Resource Object (CRO).

2. KubeDB Provisioner operator watches the Qdrant CRO.

3. When the operator finds a Qdrant CRO, it creates required number of PetSets and related necessary stuff like secrets, services, etc.

4. Each PetSet creates a Persistent Volumes according to the Volume Claim Template provided in the petset’s configuration.

5. Then, in order to set up storage autoscaling of the Qdrant database the user creates a QdrantAutoscaler CRO with desired configuration.

6. KubeDB Autoscaler operator watches the QdrantAutoscaler CRO.

7. KubeDB Autoscaler operator continuously watches persistent volumes of the databases to check if it exceeds the specified usage threshold.

8. If the usage exceeds the specified usage threshold, then KubeDB Autoscaler operator creates a QdrantOpsRequest to expand the storage of the database.

9. KubeDB Ops-manager operator watches the QdrantOpsRequest CRO.

10. Then the KubeDB Ops-manager operator will expand the storage of the database as specified on the QdrantOpsRequest CRO.

In the next docs, we are going to show a step-by-step guide on Autoscaling storage of Qdrant database using QdrantAutoscaler CRD.
