Qdrant TLS Encryption

Prerequisite: To configure TLS/SSL in Qdrant, KubeDB uses cert-manager to issue certificates. So first you have to make sure that the cluster has cert-manager installed. Install cert-manager in your cluster following steps here.

To issue a certificate, the following CRDs of cert-manager are used:

• Issuer/ClusterIssuer: Issuers and ClusterIssuers represent certificate authorities (CAs) that are able to generate signed certificates by honoring certificate signing requests. All cert-manager certificates require a referenced issuer that is in a ready condition to attempt to honor the request. You can learn more details here.

• Certificate: cert-manager has the concept of Certificates that define a desired x509 certificate which will be renewed and kept up to date. You can learn more details here.

Qdrant CRD Specification:

KubeDB uses the following CRD fields to enable TLS/SSL encryption in Qdrant.

• spec:
  • tls:
    • issuerRef
    • certificates
    • client
    • p2p

Read about the fields in detail from the Qdrant Concepts page.

KubeDB uses the Issuer or ClusterIssuer referenced in the tls.issuerRef field, and the certificate specs provided in tls.certificates to generate certificate secrets. These certificate secrets including ca.crt, server.crt, tls.key, etc. are used to configure the Qdrant server.

Here,

• issuerRef is a reference to the Issuer or ClusterIssuer CR of cert-manager that will be used by KubeDB to generate necessary certificates.

  • apiGroup is the group name of the resource that is being referenced. Currently, the only supported value is cert-manager.io.
  • kind is the type of resource that is being referenced. KubeDB supports both Issuer and ClusterIssuer as values for this field.
  • name is the name of the resource (Issuer or ClusterIssuer) being referenced.

• certificates (optional) is a list of additional certificates used to configure the Qdrant server. You can specify custom dnsNames, ipAddresses, and subject for server certificates.

• client (optional, default false) enables TLS for client-to-server communication. When set to true, the Qdrant server will accept TLS-encrypted connections from clients.

• p2p (optional, default false) enables TLS for peer-to-peer communication between Qdrant nodes. When set to true, inter-node communication within the Qdrant cluster will be encrypted using TLS.

How TLS/SSL Configures in Qdrant

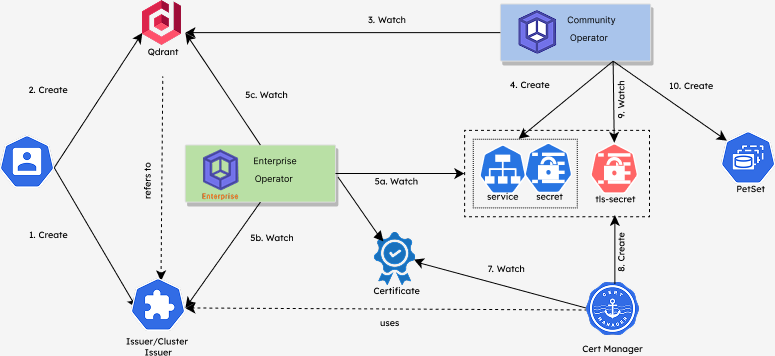

The following figure shows how KubeDB configures TLS/SSL in Qdrant. Open the image in a new tab to see the enlarged version.

Deploying Qdrant with TLS/SSL configuration process consists of the following steps:

1. At first, a user creates a Issuer/ClusterIssuer CR.

2. Then the user creates a Qdrant CR which refers to the Issuer/ClusterIssuer CR that the user created in the previous step.

3. KubeDB-Provisioner operator watches for the Qdrant CR.

4. When it finds one, it creates Secret, Service, etc. for the Qdrant.

5. KubeDB Ops-manager operator watches for Qdrant(5c), Issuer/ClusterIssuer(5b), Secret and Service(5a).

6. When it finds all the resources (Qdrant, Issuer/ClusterIssuer, Secret, Service), it creates Certificates by using tls.issuerRef and tls.certificates field specification from Qdrant CR.

7. cert-manager watches for certificates.

8. When it finds one, it creates certificate secrets tls-secrets (server, client secrets, etc.) that hold the actual certificates signed by the CA.

9. KubeDB-Provisioner operator watches for the certificate secrets tls-secrets.

10. When it finds all the tls-secrets, it creates the related PetSet so that the Qdrant database can be configured with TLS/SSL.

In the next doc, we are going to show a step-by-step guide on how to configure a Qdrant database with TLS/SSL.
